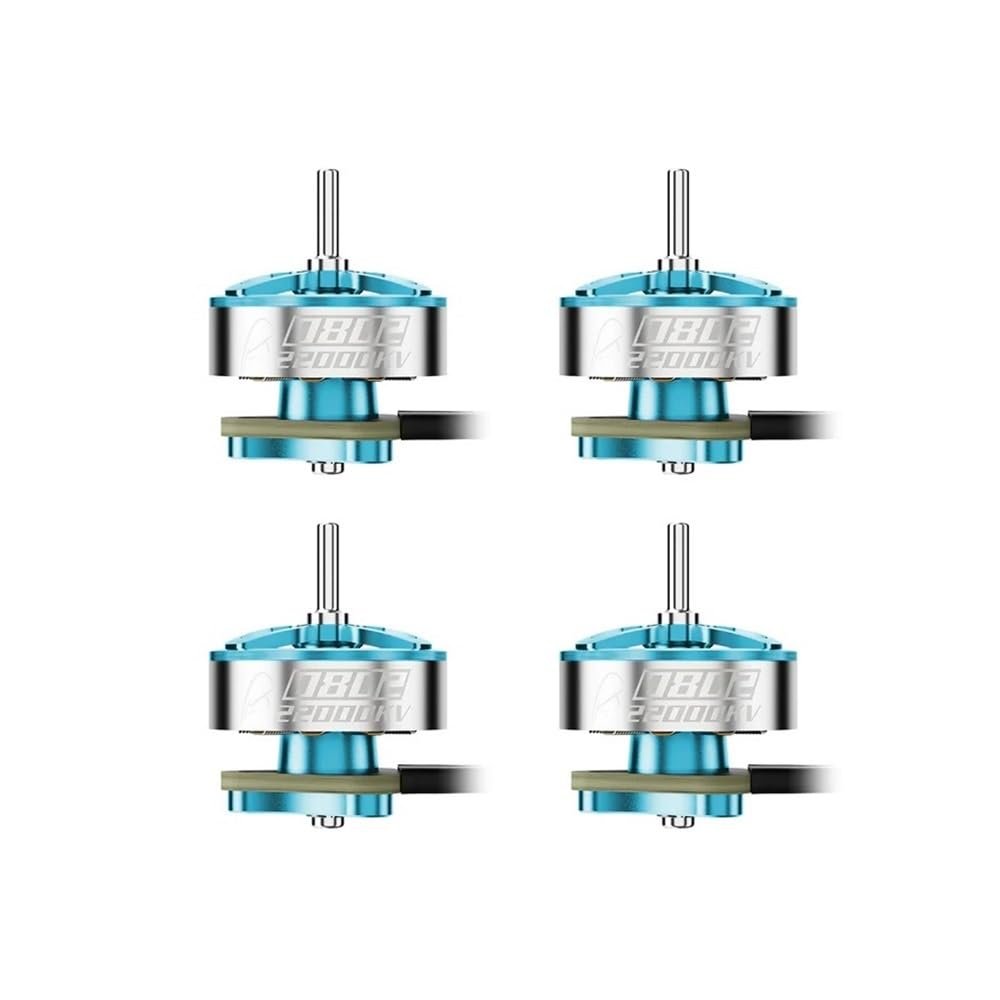

0802 22000KV / 25000KV 28000KV Brushless Motor for Air75 II 1S Platforms Propulsion Alignment 4PCS(0802 II-22000KV)

Description

• Structural Craftsmanship: Features a 0.1mm stator core and upgraded rotor housing material, engineered to achieve superior efficiency while significantly enhancing resistance for propulsion stability.
• Alignment Specifications: Available in three performance versions to meet specific mission demands. The 28000KV variant is integrated with dual-ball bearings for exceptional high-RPM stability and response.
• Power Efficiency: The 0.1mm stator technology reduces magnetic losses and , improving efficiency by 0.1-0.2g/W. windings ensure linear power output and significantly extend flight endurance for 1S platforms.
• Mounting Compatibility: Equipped with standard 3*M1.4 EQS 6.6mm interfaces and JST1.25 3Pin connectors. Fully aligned with flight platform standards, supporting rapid modular installation and system maintenance.
• Mission Readiness: Professional propulsion core lightweight design with long-term mechanical reliability. Ideal for hardware on 75mm UAV platforms, ensuring consistent and reliable performance.

The 0802 (2026 Edition) Reinforced Brushless Motor is a specialized propulsion solution developed for 1S UAVs. The core innovation lies in the integration of a 0.1mm stator, designed to achieve an optimal balance between high energy efficiency and thermal stability. Three KV variants cater to specific mission profiles: Freestyle (22000KV) for smooth low-throttle torque; Racing (25000KV) for high-agility maneuvers; and Champ (28000KV) for professional-grade power output and instant response.

Technical Specifications
Stator Tech: Industry-leading 0.1mm Silicon Steel
KV Ratings: 22000KV / 25000KV / 28000KV (Optional)
Peak Power: to 34.3W (Champ Version)
Rated Voltage: 1S LiPo (4.2V)
Shaft Specs: 1.0mm Diameter / 4.0mm Length
Wiring: 30AWG (35mm) with JST1.25 Connector
Unit Weight: 1.88g - 1.95g
Platform Compatibility: 75mm UAV Platforms

Package List: 0802 Brushless Motor 4PCS, M1.4*3 Mounting Screws 12PCS
