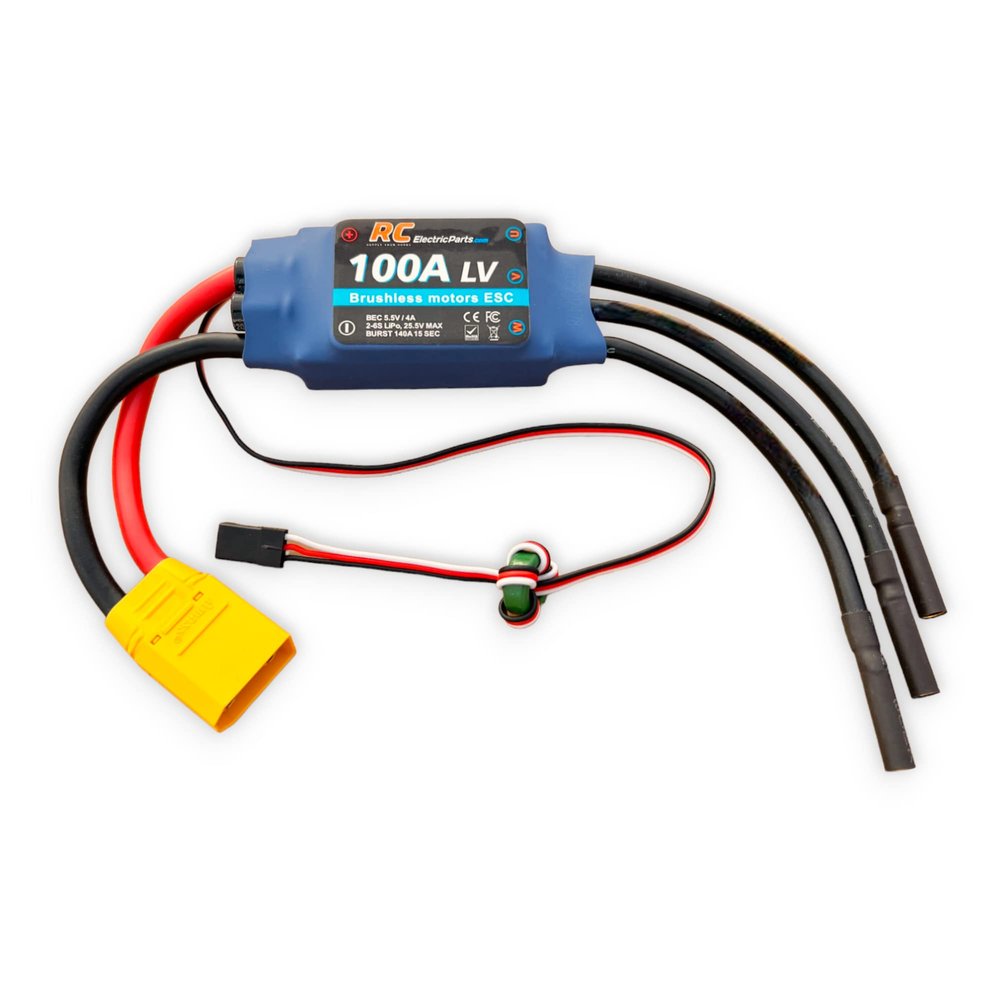

100A RC Brushless Motor Electric Speed Controller ESC 5.5v 4A UBEC

Description

• Comes Pre-soldered with XT90 Connector and 4.0mm bullet plugs
• 5.5v/4A UBEC (Very Efficient)- ESC will power receiver and servos
• LiPo 2 - 6s (Cells), NiCd/NiMH: 5 - 18 Cells, 6.4v - 25.2v
• Low Battery Protection, Overheat Protection, Startup Throttle Protection, Signal Loss Protection, and Abnormal Voltage Protection
• Programmable - Programming card or using Transmitter

The RC Electric Parts 100A Electric Speed Controller (ESC) is a great little powerful ESC that runs very well and doesn't run hot like other ESCs! The ESC can be programmed via the transmitter as explained in the instructions or using a programming card that can be purchased separately. Make sure to use an RC Electric Parts Programming card to ensure that it'll properly program the ESC. Benefits: Programmable either using a programming card or transmitter Super smooth and accurate linear throttle adjustment Supports high RPM motors. Utilizes smaller MOSFETs to minimize weight. Minimal heat loss Specs: Continuous Output: 100A Bursts Output: 140A for 15 seconds UBEC: 5.5V/4A Lipo Battery: 2 - 6s (cells) NiCd/NiMH: 5 - 18 cells Voltage Input: 6.4v - 25.5v Size: 66mm x 35mm x 25mm Weight: 95g Motor Type: Brushless Motor Max RPM: 240,000 rpm for a 2 pole, 80,000 rpm for a 6 pole, or 40,000 rpm for a 12 pole brushless motor ESC Manual Link https://www.rcelectricparts.com/esc-user-guide.html
