160KG Robot Servo Motor 24V High Torque Steel Gear Digital Steering Servo for RC Vehicles, Robotic Arms, Humanoids, and More with Mount Brackets (270)

Description

• High-Power Performance with Up to 185kgcm Torque The RDS51160SG 160kg robot servo is designed for heavy-duty applications with impressive torque ranging from 155kgcm at 19.2V to 185kgcm at 25.2V, making it perfect for industrial and robotic tasks that require reliable and high-performance actuation. With an operating speed as fast as 0.19 sec/60 at 25.2V, it ensures precision and quick response for demanding projects.
• Efficient Power Management & Low Idle Current With a low idle current of just 4mA at 19.2V and 5mA at 24V, this servo offers exceptional energy efficiency, allowing for extended use with less power consumption. Even under high loads, the servo operates smoothly without compromising on performance.
• PWM Control for Precise Operation Equipped with PWM (Pulse Width Modulation) control, the RDS51160SG provides 270 of rotation with a dead band width of 3sec and an operating frequency of 50-330Hz, ensuring precise and responsive movement control for complex robotic systems and heavy-duty machinery.
• Premium Build for Reliability and Longevity Constructed with high-strength steel gears and double bearings, the servo ensures smooth operation and durability under heavy load conditions. The CNC-machined aluminum components further enhance the stability and heat dissipation, ensuring long-lasting performance in a variety of applications. With CE/RoHS certifications, it meets the highest industry standards for quality and safety.
• Versatile and Easy to Install The RDS51160SG servo comes with a complete set of mounting accessories, including 2 U-shaped aluminum mounts and 2 aluminum circle discs, making it easy to integrate into your system. The servo is compatible with a range of robotic, industrial, and RC applications, offering excellent performance across various environments. Package includes: 1x 160kg servo, 2x aluminum mounts, 2x aluminum circle discs, and one set of plastic accessories.

Product Specifications:
Operating Voltage Range: 19.2V - 25.2V
Idle Current: 4mA at 19.2V / 5mA at 24V / 6mA at 25.2V
Operating Speed: 0.24 sec/60 at 19.2V / 0.21 sec/60 at 24V / 0.19 sec/60 at 25.2V
Stall Torque: 155kgcm at 19.2V / 170kgcm at 24V / 185kgcm at 25.2V
Stall Current: 3.8A at 19.2V / 4.2A at 24V / 4.5A at 25.2V
Motor Type: 3-pole motor
Gear Type: Steel Gear
Spline: 18 Tooth
Gear Ratio: 357
Connector Wire Length: 17.7in (450mm)
Size: 2.55 x 1.18 x 1.88 inches (65 x 30 x 48mm)
Weight: 5.75oz (163g)
CE/RoHS Certified
Environmental Conditions:
Storage Temperature Range: -30C to 80C
Operating Temperature Range: -15C to 70C
Packing List:

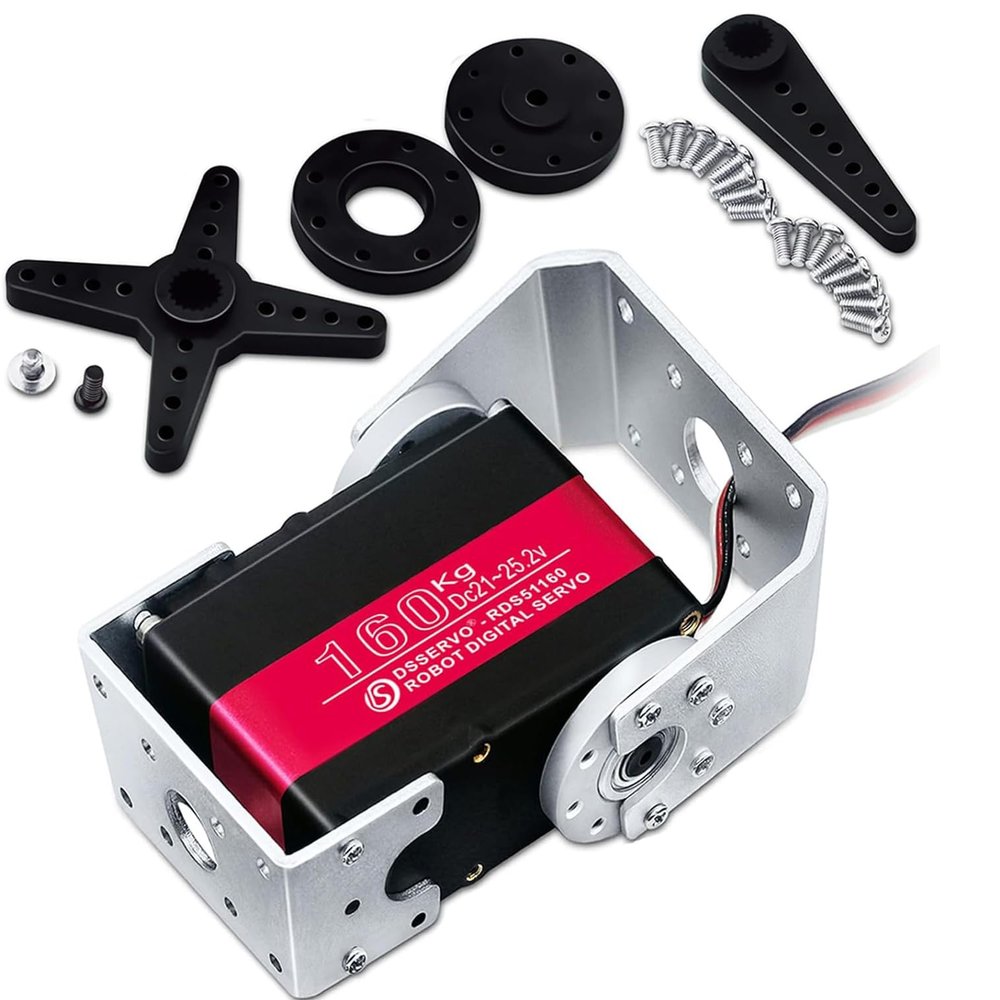

1x RDS51160SG 160kg Robot Servo
2x U-Shaped Aluminum Mounts
2x Aluminum Circle Discs
1 Set of Plastic Accessories (As shown in the picture)
Key Optimizations:
Clear Highlighting of Key Features: The descriptions emphasize performance factors like torque, speed, and idle current, making it easy for customers to understand the capabilities of the product.
Energy Efficiency & Precision: The servos low idle current and PWM control are showcased to appeal to customers who prioritize energy efficiency and precise operation.
Build Quality and Longevity: Emphasis on steel gears, double bearings, and aluminum components conveys the high-quality, durable construction of the servo.
Detailed Product Specifications and Packaging Information: The product dimensions, weight, and included accessories are clearly outlined to avoid any confusion and help customers visualize the product and its application.
This revised version should effectively engage potential buyers by focusing on the servo's high performance, efficiency, and durability, while ensuring the technical details are easy to digest.
