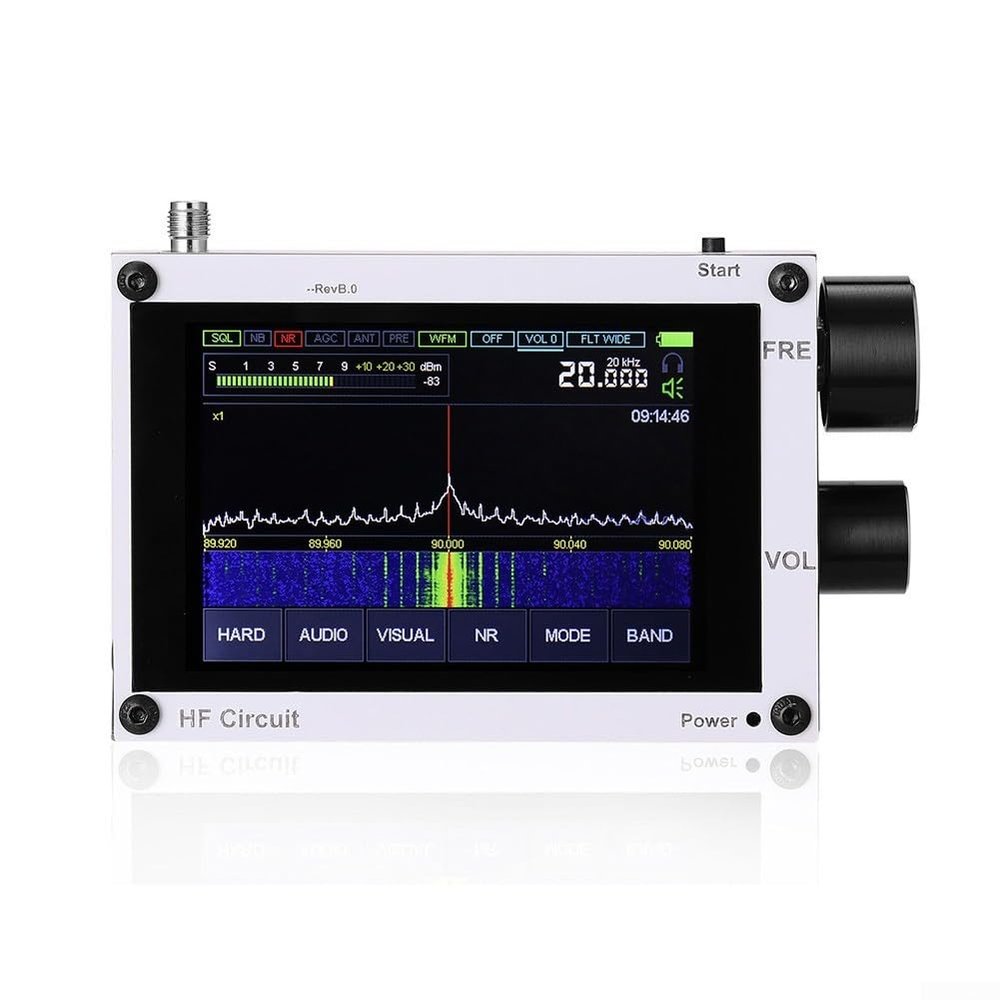

1Pc 1.10D 50KHz-2GHz Receiver HAM, Digital Signal Processing Receiver For DSP Receiver (without Expansion Board), Silver

Description

• WIDE FREQUENCY RANGE: Experience exceptional signal reception with this portable radio receiver covering an impressive 50kHz-2GHz spectrum (excluding 250MHz-400MHz). Featuring multiple demodulation modes including AM, SSB, NFM, and WFM, this versatile device captures everything from shortwave broadcasts to utility signals with for HAM radio enthusiasts and monitoring professionals.
• ADVANCED for DSP TECHNOLOGY: Equipped with powerful for DSP capabilities powered by the high-performance STM32H743 processor running at 480MHz, this receiver delivers superior signal processing with adaptive noise suppression, variable filter width adjustment, and AGC for crystal-clear audio even in challenging reception environments.
• HIGH DEFINITION DISPLAY: Navigate frequencies with using the responsive 3.5-inch IPS capacitive touchscreen interface. The intuitive display shows real-time spectrum analysis with 160kHz span capability, allowing you to visualize signals and make precise tuning adjustments with either touchscreen controls or the convenient encoder button system.
• PREMIUM CONSTRUCTION: Built with a professional-grade 4-layer circuit board and metal housing, this compact receiver (100 x 75 x 32mm) features enhanced RF performance with excellent sensitivity (0.3V=10dB S/N up to 250MHz) and approximately 85dB dynamic blocking range for reliable signal reception in various environments.
• LONG BATTERY LIFE: Stay connected longer with the built-in 3000mA rechargeable lithium battery that powers your monitoring. Complete with for SMA antenna connector, dual sound chambers for rich audio reproduction, and TYPE-C connectivity for computer interfacing with CAT control and IQ/audio transmission capabilities for extended functionality.

Features:
* 4-layer circuit board structure, more powerful performance.
* 3.5-inch IPS capacitive screen.
* Built-in 3000mA rechargeable lithium battery.
* Adopts sound unit, 2 oscillating chambers, the speaker has its own sound chamber, and the bass sound quality is very full.
* Flash the machine via USB cable.
* Support frequency range: 50KHz-2GHz (250MHz-400MHz is blocked by the author).
* Demodulation mode: AM, SSB, NFM, WFM.
* Firmware version: 1.10D.

Specifications:
Part name: Receiver
Material: Metal
Color: Silver
1. The radio is built based on the principle - the function is determined by the loaded software;
2. Support frequency range: 50KHz-2GHz (250MHz-400MHz is blocked by the author)
3. Multiple analog modulation types: AM, SSB, NFM, WFM;
4. Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, noise suppressor, AGC, equalizer;
5. Adopts the full-featured chip msi001;
6. Adopts the powerful stm32h743 with a clock frequency of 480MHz;
7. Built-in UHF;
8. Controller: 2; encoder with buttons and touch screen;
9. Power consumption: 300mA when listening to music with headphones;
10. Connect to the computer via TYPE-C, which can transmit CAT, for IQ and audio.
11.160kHz span, expandable;
12.Sensitivity: up to 250MHz, S/W is 0.3V=10dB; the above measurements were not performed due to lack of measurement equipment;
13.Due to the characteristics of the msi001 chip used, the for dynamic blocking range is about 85dB.
14. With backlight control;
15. for SMA female antenna socket;
16. Size: about 100 x 75 x 32mm (excluding connector size).

Package Contents:
1 x Receiver
1 x for SMA Antenna
