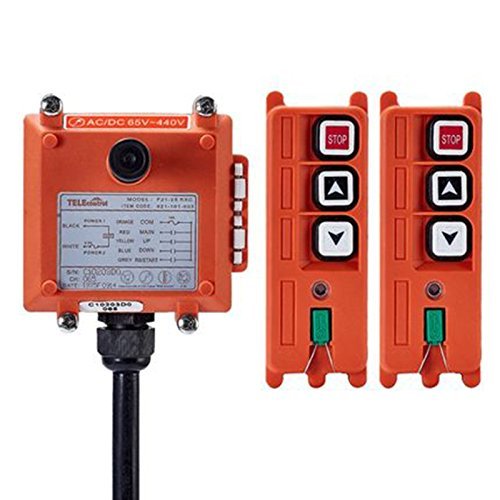

2 Key Crane Industrial Radio Remote Control Wireless Transmitter Stop Button Switch F21-2S AC/DC 65-440V (2 Transmitter+1 Receiver)

Description

• Material: Glass-Fiber P, Control distance: Approx 100m;
• Stop Button Can be Program to be Start, Normal, Toggle Function etc.
• Transmitter and Receiver Labels use Laser Engraving Technology, Waterproof, Wear-Resistant, Clear.
• Up/Down can be Programmed to interlock or Non-interlock, Toggle and Normal etc.
• Suit for Bridge Crane / Overhead crane / Chain Hoist / Monorails / Concrete Pump Truck / Mobile Lifting / Tower Crane etc.

Parameters

Transmitter
Number of function buttons: 2 x one-step buttons (Up and Down)
Material: Glass-Fiber PA
Dimension: 132*45*28mm (5.2* 1.8* 1.1 in.)
Weight: 98G (without batteries)
Protection Class: IP65
Frequency range: VHF: 310~331MHz; UHF: 425~446MHz
Transmitter power: Less than or equal to 10dBm
Safety code: 32bits (4.3 billion)
Temperature range: -40~80 degrees Celsius (-40~176 degrees Fahrenheit)
Control distance: Approx100m

Receiver
Receiver power supply: 65-440V AC/DC
Material: Glass-Fiber PA
Dimension: 88*92*62mm
Weight: 290G
Protection Class: IP65
Temperature range: -40~80 degrees Celsius (-40~176 degrees Fahrenheit)
Frequency range: VHF: 310~331MHz; UHF: 425~446MHz
Receiver sensitivity: -110dBm
Cable length: 1.65 meters
Safety code: 32 bits (4.3 billion)

Note:
The LED on the front of the transmitter indicates the condition of the batteries. It will flash green during operation if the battery power is sufficient and will flash red if the battery power is low. If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries.

We also offer products in the voltage range of 18 ~ 65V AC/DC. Contact us if needed. Select the appropriate product based on the operating voltage.

Package includes:
2PC* Transmitter
1PC* Receiver
1PC* Dust bag
1PC* Manual
