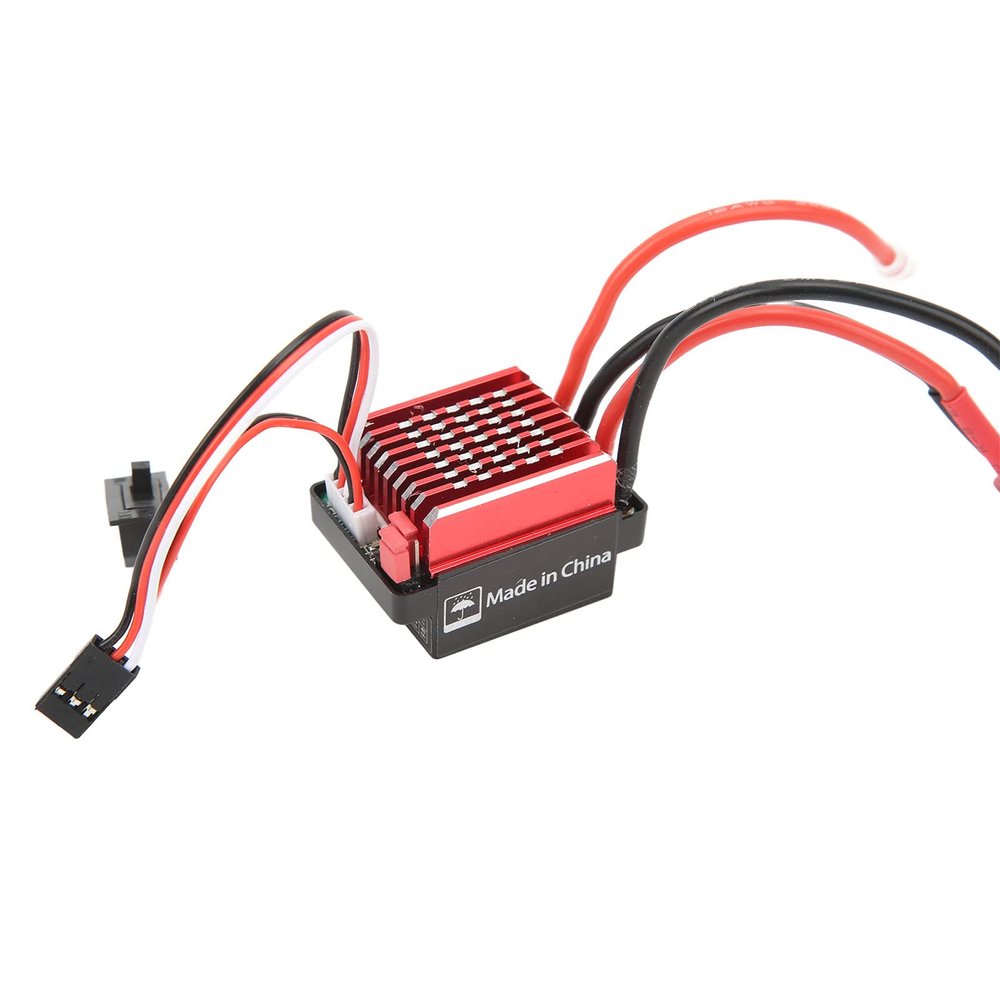

60A RC Brushed ESC, Speed Controller for HSP 1/10 RC Cars 2-3S Lipo

Description

• Three Driving Modes: Choose from forward brake with reverse, forward drag brake, or drag brake only. Pick the mode that fits your driving style on the track or trail.
• Wide Fit for 1/10 Scale Rigs: Works with HSP and other major brand 1/10 RC cars, including the D90. Swap between builds without changing the speed controller.
• Built-in Safety Shutoffs: Low voltage cutoff protects your 2S or 3S Lipo battery from over-discharge. High temp and throttle loss protection help prevent damage during long runs.
• Aluminum Heat Sink Cooling: A built-in alloy heat sink pulls heat away fast, so the ESC stays cooler during bashing or crawling sessions. Less heat means more consistent performance.
• Hassle-Free Setup: Automatic throttle travel and neutral calibration get you running right out of the box. No need to fiddle with programming cards or menus.

1. Application: 60A RC car brushed ESC is suitable for , for HSP, for Redcat and other brand 1/10 RC cars, such as for , for D90, etc.
2. Heat Dissipation: 60A RC brushed ESC with built in heat sink, good heat dissipation efficiency, can quickly reduce the ESC temperature.
3. Multiple Operation Modes: Brushed ESC has multiple operation modes such as forward braking and reverse braking, forward dragging braking and dragging braking.
4. Easy to Use: Brushed speed controller ESC can automatically throttle travel adjustment, automatic throttle neutral adjustment, easy to use.
5. Protection Function: 60A brushed ESC has multiple protections such as low voltage protection for lithium battery, automatic battery power detection, high temperature protection, and throttle signal loss protection.

Specification:
Item Type: 60A RC Brushed ESC
Box/Cover Material: Plastic, Aluminum Alloy
Color: Red
ESC Size: Approx. 43 x 30 x 27mm/1.7 x 1.2 x 1.1in (without Cable)
Continuous Current: 60A
Current: 360A
Applicable Battery: 2-3S Lipo/5-9 Cells Nimh
BCE Output: 6V 2A (Linear Regulator Switch)
Power Plug: T Plug
Applicable: for , for HSP, for Redcat and Other Brands of 1/10 RC Cars (Such As for , for D90, Etc.)

How to Use:
Motor Reference:
2S Lipo/6 battery NiMH:540/550 motor: >12T or RPM below 30000 at 7.2V
3S Lipo/9 battery NiMH:540/550 motor: >18T or RPM below 20000 at 7.2V

Package List:
1 x60A RC Brushed ESC

Note:
Please allow some errors due to manual measurement.
