Description
- 15MM ROV
Parameter
Cable length: 15 meters
Motor: Brushed motor
Voltage: 2S LiPo
Control box: can maneuver ROV in the water forward, backward, up and down, left and right turns
Number of motors: 4
ROV size: (L*W*H) 300*200*200mm
Rov Set Components:
Thruster CW#1*1,Thruster CW#2*1,Thruster CCW#3*1
Tube#2*2,Tube#3*4,Tube#4*4,Tube#5*2,Tube#6*2,Tube#7*2,
2S LiPo*1,2S charger*1,Right angle head#1*10,3 through-head#8*4,

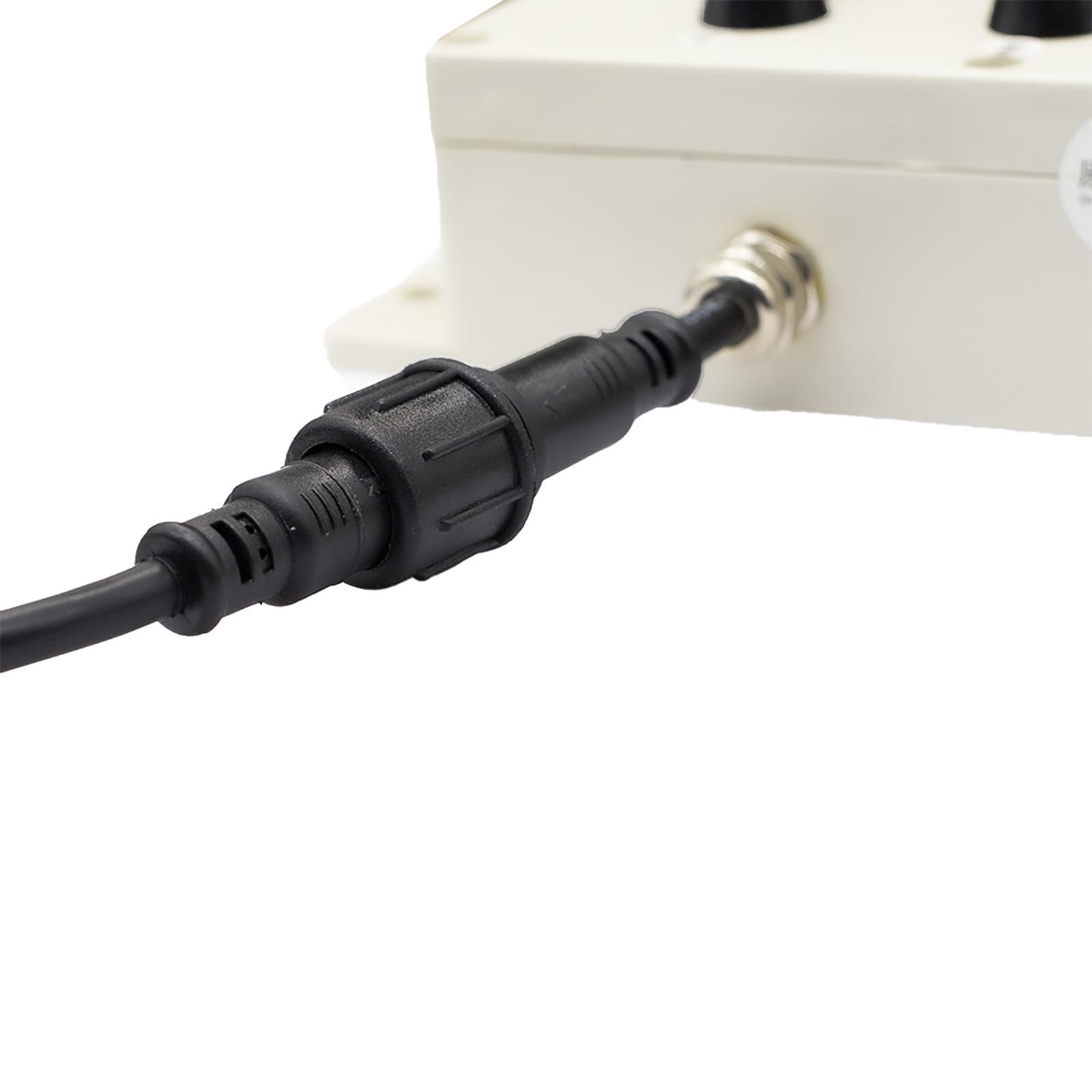

Parts kit*1,Rectangular grid*1,Zip ties*1,Buoyancy Sponge Roll*3,Control box*1,Waterproof control wire*1
How The ROV is Used?
1. Soak the ROV in water and fill the inside of the tube with wate
2. Control box principle:
First vertical row, contro thruster #1;
Second vertical row, control thruster #2;
Third vertical row, control thruster #3.
3.Each vertical row has 3 buttons, respectively:
Green button - forward;
Blue knob - speed adjustment;
Red button - backward.
4.If ROV forward - press green buttons #1 and #3 simultaneously;
If the ROV backward --- press the #1 and #3 red buttons simultaneously;
If the ROV turns left --- press the red #1 and green #3 buttons at the same time;
If the ROV turns right --- press the green #1 and red #3 buttons simultaneously;
If the ROV sinks --- press the green button #2;
If the ROV floats up --- press the red button #2.
