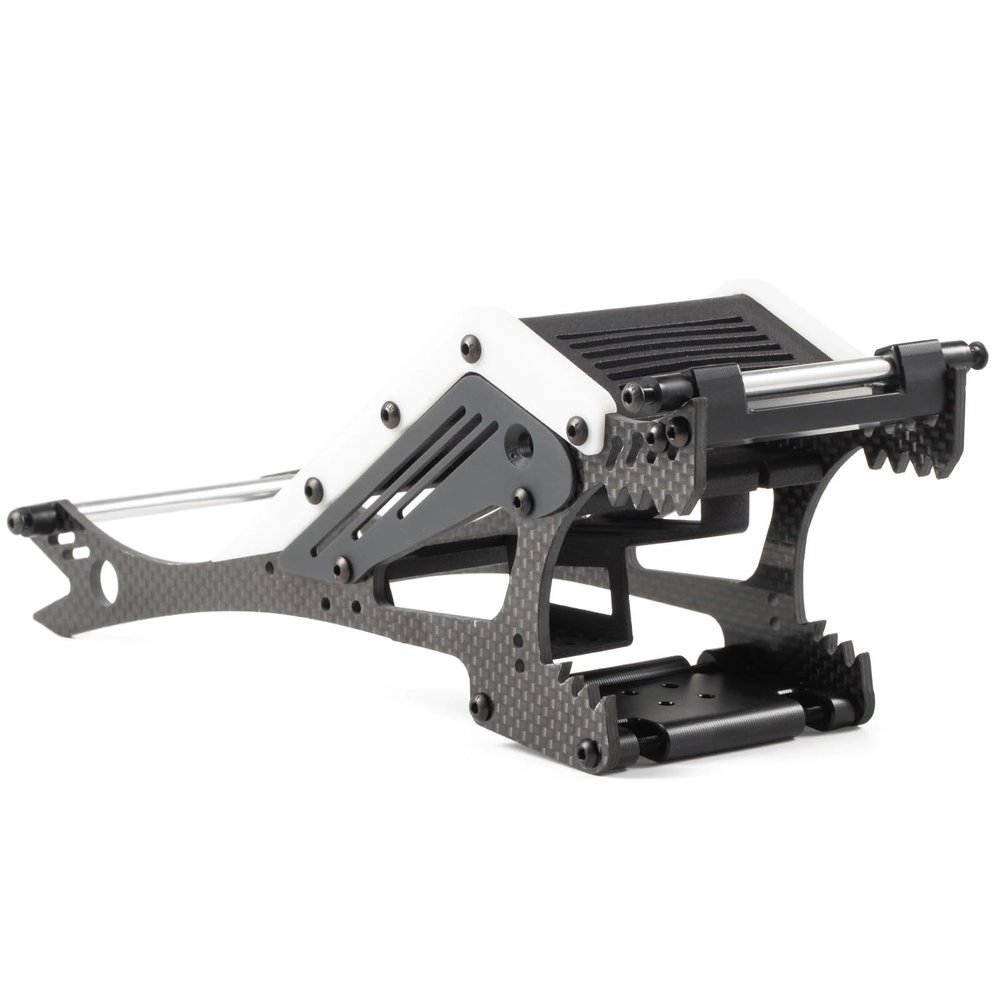

CobraCrawler 1/10 RC Crawler LCG Chassis Kit,Wolf-Head Carbon LCG Chassis Builders Kit for 1/10 RC Crawler 1.9S Cheater Rigs Comp Builds H10 F10 Axle (Black Set)

Description

• Ultra-Low CG Performance for Competition Builds:Constructed from lightweight carbon fiber and advanced 3D printed components, this LCG chassis is engineered to optimize weight distribution delivering enhanced stability, reduced rollovers, and superior control for serious 1.9S cheater rig competition setups.
• Aggressive Wolf-Head Design with Functional Geometry:The distinctive wolf-head frame isnt just for looks its optimized geometry improves ground clearance and breakover performance, allowing your crawler to tackle demanding terrain with confidence, even when running straight axle configurations.
• Rock-Sliding Skid Plate for Obstacle Domination:The forward large-angle Delrin skid plate is designed to glide smoothly over rocks and debris, minimizing hang-ups and maximizing momentum on technical climbs.
• Built for Custom Tuning & Versatility:Multiple front and rear mounting positions allow precise wheelbase and suspension tuning, while the Axial 3-gear transmission skid pattern supports popular compact drivetrain setups for competitive builds.
• Integrated Electronics Management:Equipped with 3D-printed internal storage compartments and electronics tray, this chassis provides clean component placement helping maintain balance while keeping your build organized and performance-focused.

Features:

Lightweight carbon fiber & 3D printed materials, for better center of gravity distribution.

Distinctive wolf-head-shaped chassis frame, just as powerful and aggressive as a wolf

Improved geometry gives it great clearance. Even with a straight axle, it can handle rough terrain just fine.

Forward large angled skid plate, super slippery for sliding over rocks and debris.

Skid hole pattern is for Axial 3 gear transmission or simular.

There are 3D-printed storage compartments inside the chassis for easy placement of electronics.

Multiple front and rear mounting options for wheelbase tunning.

Chassis Kit Includes:

2x Carbon Fiber Frame Rails

1x Delrin Skid Plate

1x 3D Printed Roof Top

1x 3D Printed Electronics Tray

2x Black 3D Printed Side Panels (Left & Right)

2x White 3D Printed Side Panels (Left & Right)

1x Delrin Front Bumper

3x Aluminum Standoffs

1x Hardware Kit

Needed To Complete:

AXLES. Offset axle, portal or straight, with BTA(behind the axle) servo mount, with BOA(battery on axle) mount. Like Vanquish H10 straight axle and F10 Portal axle.

SHOCKS. 100mm front, 110mm rear, respectively for travel needs.

TRANSMISSION. Compact required. Tiny portal or NOD2 and others.

MOTOR. Smaller is bette, recomend small/stubby outrunner like SEQURE 3625 and others.

DRIVESHAFTS. Recomend "cut to length" for clearance and strength.

ESC. Compact am32 of your choice recomended. HOLMES, 3BROS, SEQURE etc.

WHEELS and TIRES. 1.9 inches, such as jc3053.

LINKS. Customize the wheelbase according to your own needs.

SERVO.

Note:

These is a custom build application, so be prepared for problem solving as not every axle, motor, links, transmission that is available on the market can be accounted for all in one.
