HGLRC H743 8S MINI V1 FC Flight Controller M3, with STM32H743 MCU ICM42688P gyroscope, Includes a 16MB Blackbox, compatible with Nblade

Description

• Equipped with the high-performance STM32H743 MCU, delivering powerful computing and rapid response
• Chose ICM42688P gyroscope for the FC to enhance the stability
• Includes a 16MB large-capacity Blackbox for comprehensive flight data logging
• Supports 8S high-voltage input for power output to keep fast response and stable control
• Fully modular plug-and-play design with direct connectors, eliminating the need for soldering
• Ultra-narrow size and dual BEC design greatly save installation space, making it compatible with small frames

Specifications
Model Name:HGLRC H743 8S MINI V1
FC Firmware:HGLRC_H743_LITE
MCU:STM32H743
GYRO:ICM42688
OSD: AT7456E
Barometer:SPA06-003
Blackbox:16MB
UART:8
Input Voltage:7.4V-33.6V/2-8SLIPO

Dimensions:42mmx25mm
Mounting Holes:20x20mmM3
Weight:6.8g

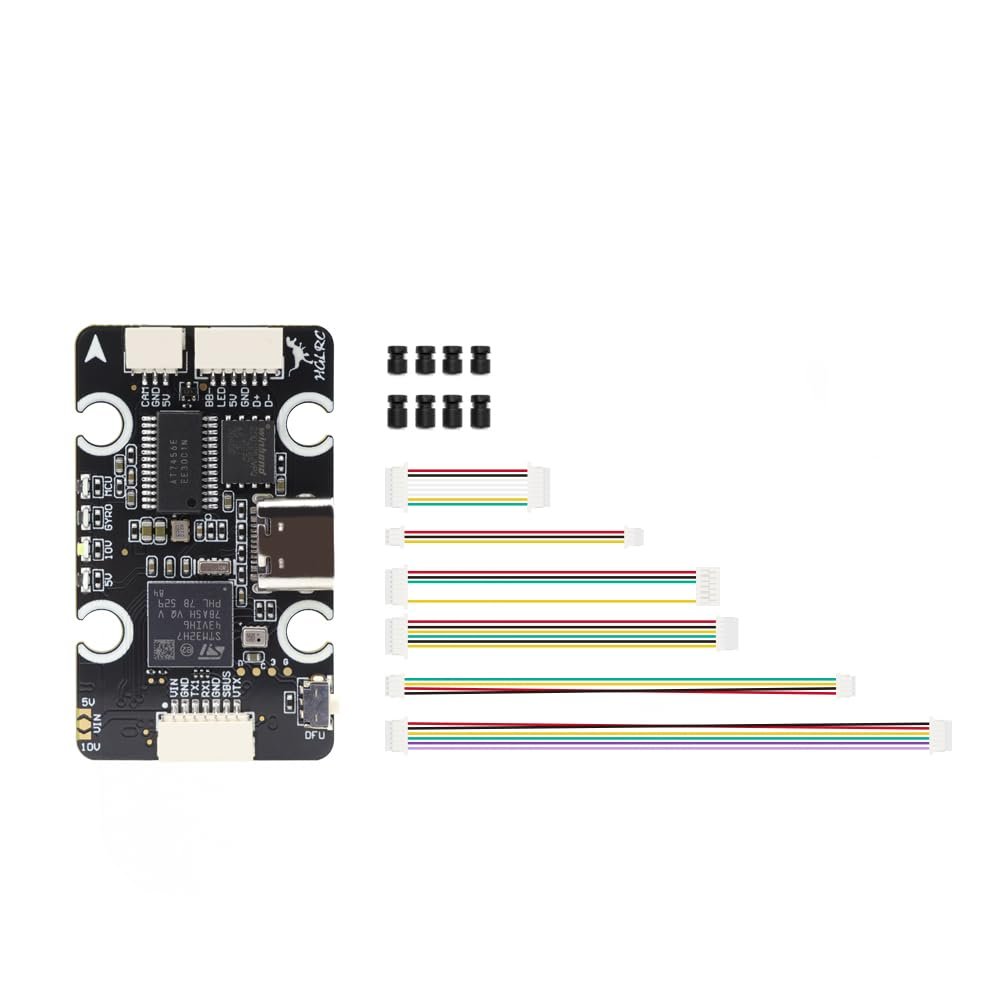

Package Contents
1x HGLRC H743 8S MINI V1 FC
1x 30AWG 25mm Double-ended SH1.0-8P Cable 1x 30AWG,100mm Double-ended SH1.0-4P Receiver Cable 1x 30AWG,50mm Single SH1.0-3P / Single SH1.25-3P Camera Cable
1x 30AWG 70MM Single GH1.25-6P / Single SH1.0-7P DJI Cable
1x 30AWG 70MM Single SH1.0-7P / Single 1.0-6P VTX Cable
1x 30AWG120mm total length, Double-ended SH1.0-6P GPS Cable
4x 3*8 Vibration Damping Standoffs
4x 3*6.6 Vibration Damping Standoffs
1x HGLRC Sticker
1x QR Code Card
