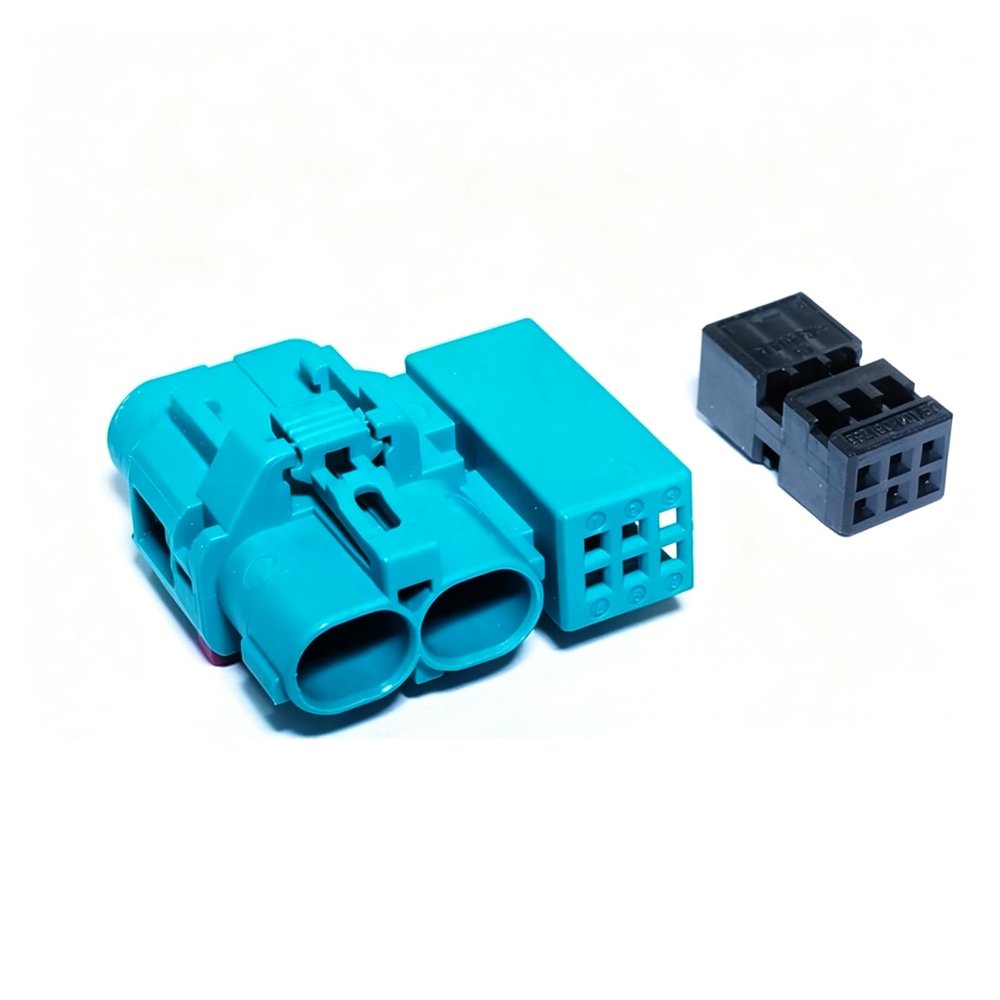

H-MTD Hybrid Connector, Dual Port H-MTD + 6-Pin MQS Female Connector, Z-Code Plastic Housing, Compatible with Rosenberger (Model 99K1HG-1CAZ5-Z)

Description

• Hybrid HighSpeed Connectivity: Integrates dualport HMTD with a 6pin MQS female interface, supporting highspeed Ethernet data (DC 10 GHz) and future power/signal expansion in one compact connector.
• Compatible: Compatible with Rosenerger Rosenberger HMTD, ensuring dropin replacement and seamless integration into existing automotive Ethernet and sensor networks.
• Robust & Reliable Design: PA66 plastic housing with Zcode keying (RAL 5021) prevents mismating; operates from 40C to +105C with 25 mating cycles, built for harsh automotive environments.
• Superior Signal Integrity: 100 impedance, goldplated contacts, and 360 full shielding deliver excellent EMI protection and stable transmission up to 10 GHz for ADAS, cameras, radar, and highresolution displays.
• SpaceSaving Zonal Architecture: Hybrid modular design reduces weight and PCB footprint, making it ideal for nextgeneration zonal ECUs, autonomous driving systems, and invehicle infotainment (IVI).

Parameter Specification
Model Number 99K1HG-1CAZ5-Z
Connector Type Hybrid Dual Port H-MTD + 6-Pin MQS Female
Impedance 100
Frequency Range DC 10 GHz
Housing Material PA66 Plastic
Contact Material Copper alloy with gold-plated interface
Coding Z-Code
Insulation Resistance 100 M
Signal Contact Resistance 10 m
Outer Contact Resistance 7.5 m
Mating Cycles 25
Operating Temperature -40C to +105C
RoHS Compliant Yes
