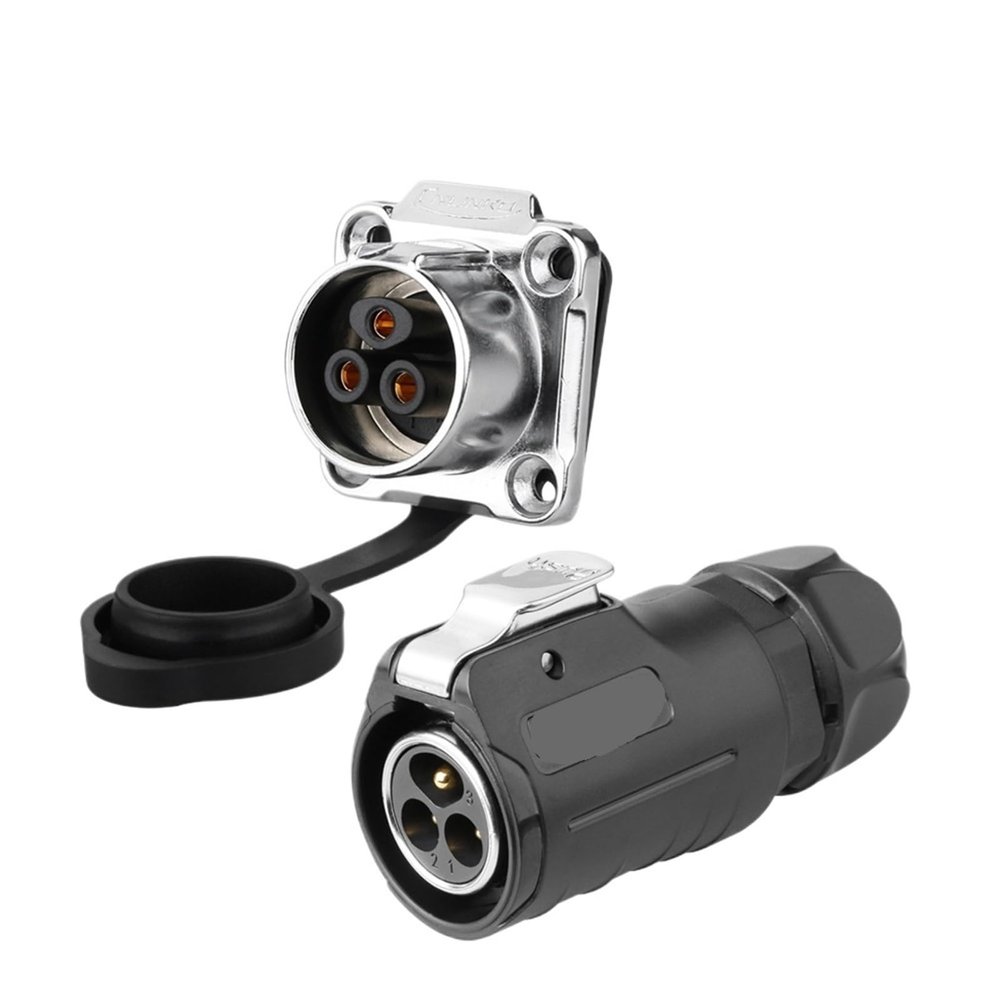

LP20 5~20A Reverse Mount Waterproof Connector with Safty Bulkhead

Description

• LP20 5~20A Reverse Mount Waterproof Connector with Safty Bulkhead

LP20 5~20A Reverse Mount Waterproof Connector with Safty Bulkhead
EU LVD Voltage : High voltage: Above 50Vac or 75Vdc
High-concerned chemical : None
Model Number : LP20
Rated current(2~4Pin) : 20A
Rated current(5~7Pin) : 10A
Rated current(9~14Pin) : 5A
Withstand voltage(2~7pin) : 2000V AC
Withstand voltage(9~14pin) : 1500V AC
Insulation resistance Min. : 500M
Cable diameter(2~7/14pin) : O.D 10.0-12.0mm
Cable diameter(9~12pin) : O.D 5.0-6.5mm
Connection method : Soldering
Protection level : IP68(2m/48h)
Machanical life Min. : 500 cycles
Operating temperature : -25~+85
Salt spray Min. : 48H
Rated voltage(2~7pin) : 500V AC
Rated voltage(9~14pin) : 250V AC
Wire guage(2~4pin) : 2.5~4.0mm/14-12AWG
Wire guage(5~7pin) : 1.0~1.5mm/18-16AWG
Wire guage(9~14pin) : 0.34~0.5mm/22-20AWG
