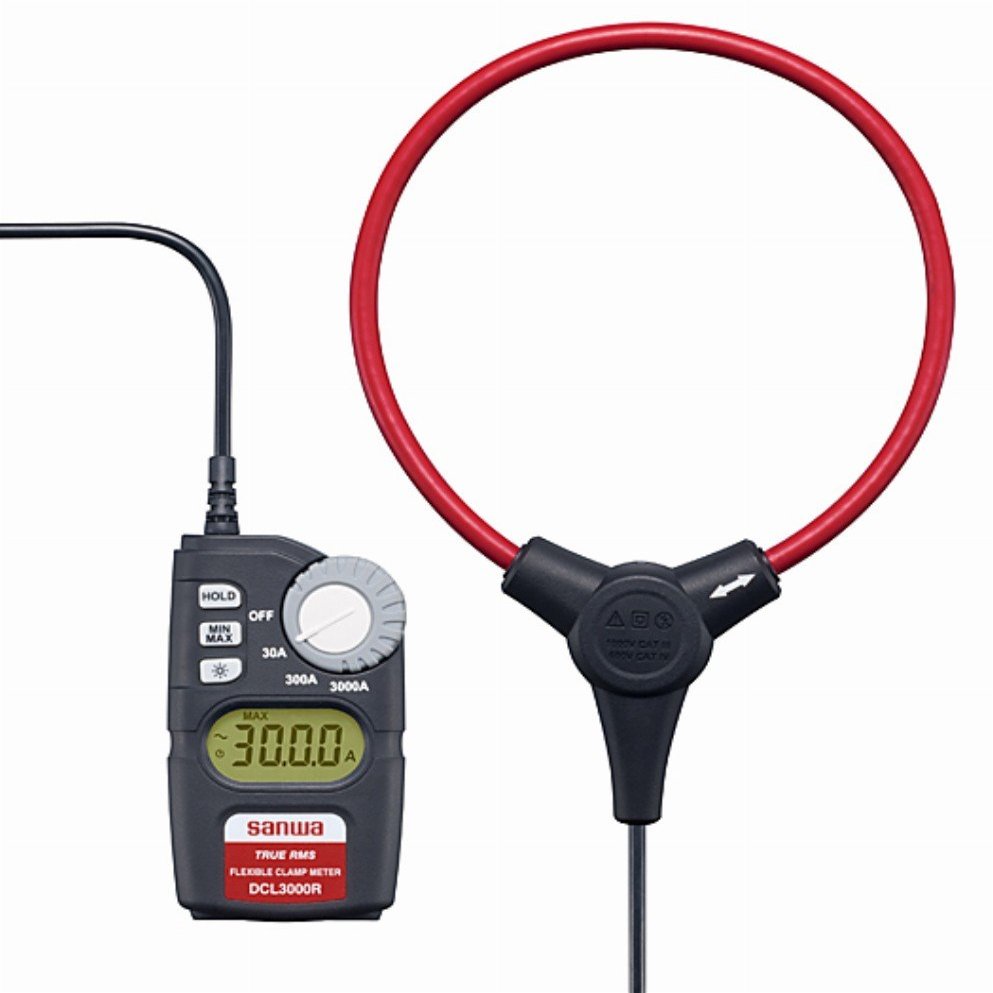

SANWA Clamp Meter with flexible CT DCL3000R

Description

This instrument is a TRUE RMS AC clamp meter designed in compliance with IEC61010-1 CAT.IV 600V. It is suitable for measuring the current of electrical lines, appliances power supply facilities operating on low voltages of no more than 600V.

DATASHEET Operation method: Double integration AC measuring method: True RMS Display: 3150 count Sampling rate: Approx. 2 times / sec Range selection: Auto and Manual Battery low warning: Battery( ) mark lights at approx. 2.3V or below Operating temperature / humidity: Temperature 540 Relative humidity Max. 80%RH, No condensation Storage temperature / humidity: -1050:Max 80%RH, No condensation Continuous use time: Approx. 130 hours at DCV(Backlight extinguished) Power consumption: 20mW TYP Bandwidth: 45500Hz Clamp diameter: 150mm Battery: LR03 x 2 Size / Mass: H120 x W70 x D26mm / 300g Safety standards: IEC61010-1 CAT.IV 600V,IEC61010-2-030, IEC61010-2-032 EMC directive: IEC61326-1 Standard accessories included: Carrying pouch(C-CL3000), Instruction manual
